Electrical Fast Transient

Electrical Fast Transient Testing Services in Canada

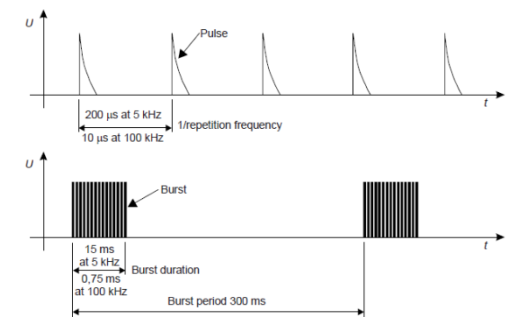

Electrical Fast Transient (EFT) are high frequency pulses that occurs because of the arcing on the power lines due connection or disconnection. This also occurs when relays, contactors, motors, or any other inductive load are turned off, then power distribution system experiences bursts of narrow high-frequency transients which can affect the performance of electronic equipment or might damage it.

IEC 61000-4-4 defines the test procedure to simulate these electrical fast transients and test the product to verify its susceptibility level. At INTL Inc. we have EFT generator that complies with IEC 61000-4-4 requirement which can perform EFT test with following parameters:

EFT TEST - Electrical Fast Transient (EFT)/ Burst Immunity Test
Output voltage0.2 ~ ±5kV
Frequency1kHz ~ 1200KHz ±10%, continuous adjustable
PolarityPositive/negative/alternating
Pulse running time1 ~ 9999s, continuous adjustable
Discharge resistor330Ω
Internal resistance50Ω ±10%
Pulse rise time5ns ±30%
Pulse width50ns ±30% (50Ω load), 35 ns~150 ns (1kΩ load)
Number of pulses1 ~ 255, continuous adjustable
Burst period0.15 ~ 99.99s, continuous adjustable
Phase0 ~ 359°synchronous, asynchronous, automatic
Coupling/decoupling networkSingle-phase three-line, 16A CDN Capacitive Clamp

To acquire a quotation, please contact us at info@intertestlab.com. For any additional assistance, you may reach us by phone at 604-238-5060.
